Provide an even and absorbent bed of straw..
Baled silage that is lightly shredded with a Tomahawk is more palatable and easily consumed.
Operation
Blow straw up to 35', discharge to one or both sides of the tractor. Alternative delivery chutes are available to suit your requirements.
Discharge silage to the right hand side only into a ring feeder or along a feed barrier.

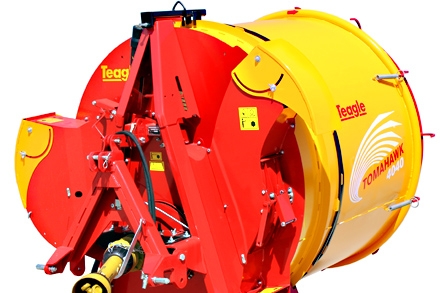

The Tomahawk 4040, 5050 and 5050XLM Bale Feeder models use Blades to chop dry or wet material. With very wet material the chop length may be as low as 4 cm, and dry material will be around 15cm. long.
Easy control of output by adjusting the speed of drum rotation.
Configurations

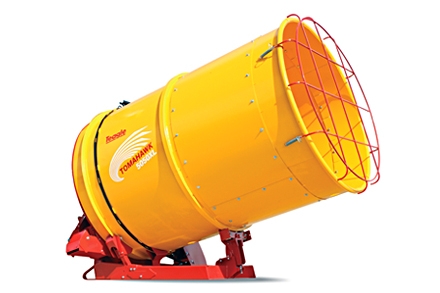

Various drum extensions are available for ease of operation or to accommodate larger rectangular bales.
4040 |
5050 |
5050XL |
|
Drum Diameter |
1.57m |
1.83m |
1.83m |
Maximum Round Bale Diameter |
1.2m |
1.5m |
1.5m |
Maximum Rectangular Bale Size |
1.2m x 0.9m |
1.2m x 1.2m |
1.2m x 1.2m |
Height Overall with machine on ground |
2.10m |
2.38m |
2.78m |
Width with chutes closed |
1.85m |
2.05m |
2.05m |
Lower chute discharge height |
0.4m |
0.4m |
0.4m |
Upper chute discharge height |
1.09m |
1.09m |
1.09m |
Length Overall |
2.10m |
2.10m |
3.68m |
Drum Extensions Available |
30, 60, & 120cm |
30 & 60cm |
N/A |
Operating Width |
2.48m |
2.48m |
2.48m |
Operating Width with Giraffe chute |
2.64m |
2.76m |
2.76m |
Swivel Giraffe Chute discharge height |
2.6m |
2.84m |
2.84m |
Silage Giraffe Chute discharge height |
1.8m |
1.8m |
1.8m |
Weight |
633kg |
725kg |
1,123kg |
PTO power required |
60HP Straw / 80HP Silage |
60HP Straw / 80HP Silage |
100HP Straw / 100HP Silage |
Feed Baled Silage |
Yes |
Yes |
Yes |
Feed Clamp Silage |
Yes |
Yes |
Yes |
Bed Cubicles / Straw Processing |
No |
No |
No |
Bed Loose Housing |
Yes |
No |
No |
