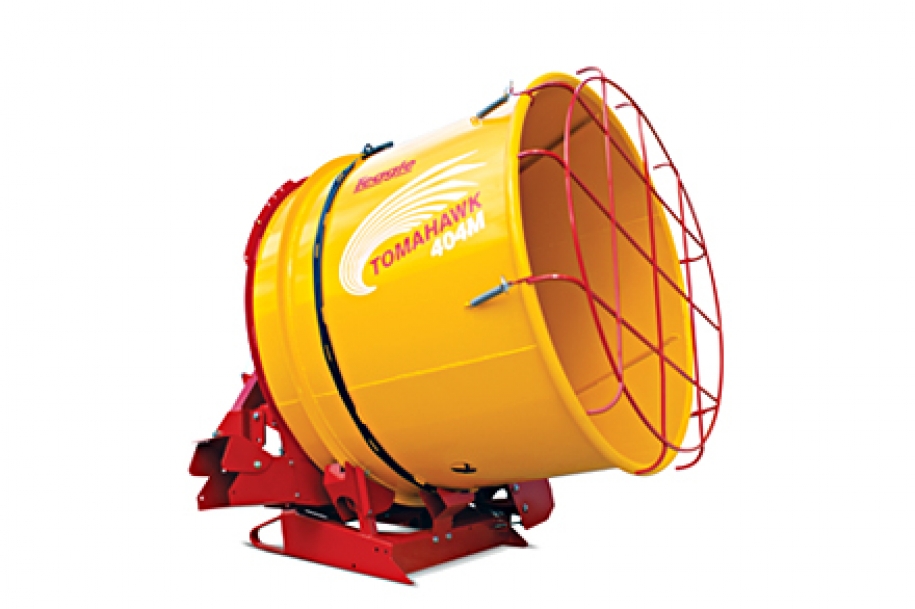

For straightforward bale processing the 404M/505M/505XLM range offers fast effective milling of straw and miscanthus to a very consistent and fine length.

Operation

Blow straw up to 30', discharge to one or both sides of the tractor. Alternative delivery chutes are available to suit your requirements.

The Tomahawk 404M, 505M and 505XLM Bale Processors use Blades or Hammers to chop dry material until small enough to pass through the holes in a screen. A range of screens are available with holes from 15mm to 36mm to obtain material of a consistent chop length.

Easy control of output by adjusting the speed of drum rotation.

Configurations

Various drum extensions are available for ease of operation or to accommodate larger rectangular bales.

The 404M/505M/505XLM range is suitable for dry material only, and will not cut silage as it will block the mill sieve

Specifiications

404M

505M

505XLM

Drum Diameter

1.57m

1.83m

1.83m

Maximum Round Bale Diameter

1.2m

1.5m

1.5m

Maximum Rectangular Bale Size

1.2m x 0.9m

1.2m x 1.2m

1.2m x 1.2m

Height Overall with machine on ground

2.10m

2.38m

2.78m

Width with chutes closed

1.85m

2.05m

2.05m

Lower chute discharge height

0.4m

0.4m

0.4m

Upper chute discharge height

1.09m

1.09m

1.09m

Length Overall

2.10m

2.10m

3.68m

Drum Extensions Available

30, 60 & 120 cm.

30 & 60cm.

N/A

Operating Width

2.06m

2.13m

2.13m

Operating Width with Giraffe chute

2.15m

2.35m

2.35m

Swivel Giraffe Chute discharge height

2.6m

2.84m

2.84m

Straw Giraffe Chute discharge height

1.9m

1.9m

1.9m

Weight

647kg

737kg

1135kg

PTO power required

80HP

80HP

100HP

Straw

Short Chop

Short Chop

Short Chop

Feed Baled Silage

No

No

No

Feed Clamp Silage

No

No

No

Bed Cubicles / Straw Processing

Yes

Yes

Yes

Bed Loose Housing

No

No

No

Tomahawk 404M-505M-505XLM Straw Mill
