Download Brochure

Specifications

7100

7100SC

Chute

Side

Swivel

Dual Chop

No

No

Straw

Spread

Spread

No. of crossbeaters

1

1

Capacity (m³)

3.0

3.0

No. of 5' round bales

Straw x 2 / Silage x 1

Straw x 2 / Silage x 1 (2 when trailed)

No. of 8' rectangular bales (4'x3' / 4'x4')

1/1

1/1

Bale chamber (tailgate down) W x H x D

1.40m x 1.25m x 2.50m

1.40m x 1.25m x 2.50m

Blow distance (max.)

22m

20m

Min. tractor PTO

60HP (90HP mounted)

60HP (90HP mounted)

Overall width (chute closed)

2.2m (trailed option 2.27m)

1.86m (trailed option 2.10m)

Overall length (tailgate up)

2.65m (trailed 3.65m)

2.65m (trailed 3.65m)

Overall length (tailgate down)

3.80 (trailed 4.80m)

3.80m (trailed 4.80m)

Overall height (chute closed)

2.11m / 2.3m

2.29m/2.59m

Tyre size

Trailed option 10.00/75-15.3

Trailed option 10.00/75-15.3

Oil flow rate (min-max) (l/min)

35-60

35-60

Feed Baled Silage

Yes

Yes

Feed Clamp Silage

Yes

Yes

Unladen weight (mounted)

1620kg

1640kg

Bed Cubicles / Straw Processing

No

No

Bed Loose Housing

Yes

Yes

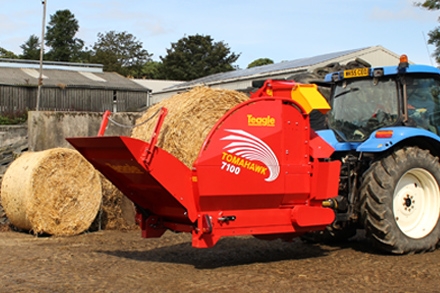

7100 Feeder / Bedder
