Outstanding flexibility with 3 jobs from 1 machine. Bed loose housing and cubicles, as well as processing short straw for feed.

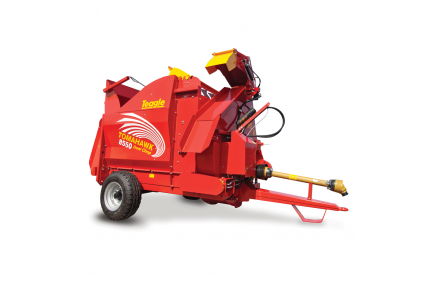

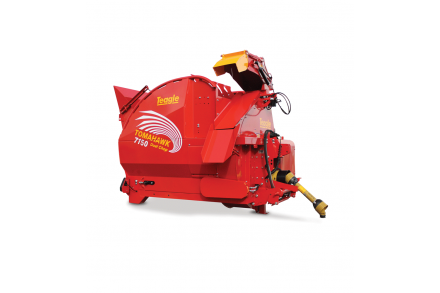

Available in 3 of our most popular bale processor models as the mounted 7150 or trailed 8150 and 8550.
Specifications |
7150 |
8150 |
8550 |
Chute |
Swivel |
Swivel |
Swivel |
Dual Chop |
Yes |
Yes |
Yes |
Straw |
Spread and Chop Short |
Spread and Chop Short |
Spread and Chop Short |
No. of crossbeaters |
1 |
1 |
1 |
Capacity (m³) |
3.0 |
3.5 |
4.5 |
No. of 5' round bales |
Straw x 2 |
2 |
2 |
No. of 8' rectangular bales (4'x3' / 4'x4') |
1/1 |
1/1 |
1/1 |
Bale chamber (tailgate down) W x H x D |
1.4 x 1.25 x 2.5m |
1.55 x 1.25 x 2.98m |
1.70 x 1.25 x 2.98m |
Blow distance (max.) |
20m |
20m |
22m |
Min. tractor PTO |
60HP (90HP mounted) |
60HP |
80HP |
Overall width (chute closed) |
1.86/2.10m |
2.1m |
2.16m |
Overall length (tailgate up) |
2.65/3.65m |
4.14m |
4.14m |
Overall length (tailgate down) |
3.80/4.80m |
5.38m |
5.38m |
Overall height (chute closed) |
2.29/2.59m |
2.58m |
2.77m |
Unladen weight |
2255kg |
2415kg |
|
Tyre size |
trailed option 10.00/75-15.3 |
10.00/75-15.3 (options available) |
10.00/75-15.3 (options available) |
Oil flow rate (min-max) (l/min) |
35 - 60 |
35 - 60 |
35 - 60 |
Feed Baled Silage |
No |
No |
No |
Feed Clamp Silage |
No |
No |
No |
Unladen weight (mounted) |
1780kg |
||
Bed Cubicles / Straw Processing |
Yes |
Yes |
Yes |
Bed Loose Housing |
Yes |
Yes |
Yes |
