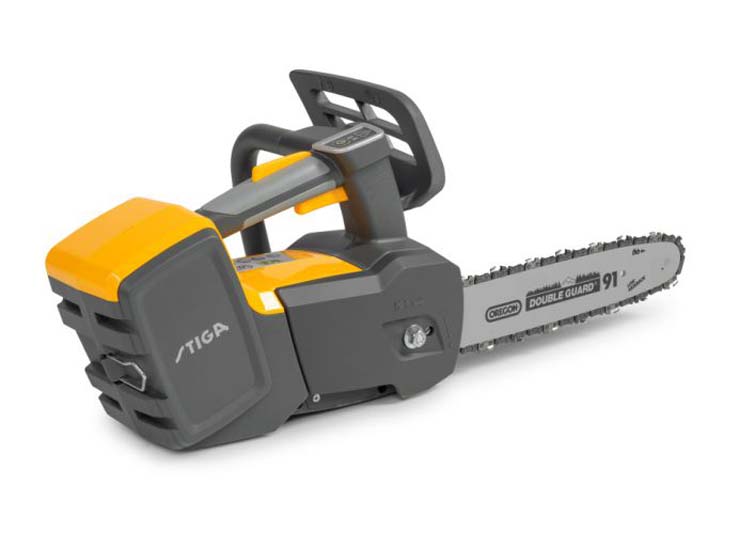

With the 48v battery-powered STIGA SPR 500 AE Chainsaw you’ll enjoy unrestricted movement with less noise, less vibration, zero emissions and only few engine maintenance requirements!

A precision machine ideal for in-tree work, the SPR 500 AE is compact and lightweight enough to be highly maneuverable where space is limited; and has been equipped with a metal hook that makes climbing with the machine easier and safer.

Further boosting safety is a fast-acting chain brake that’s activated either manually, or automatically when the inertia caused by kick-back is detected.

The SPR 500 AE features a wide side-handle and an ergonomic soft-touch top handle, that combine to ensure the operator will find it comfortable and easy to control.

A transparent window makes it simple to keep track of the oil tank fill-level; while a thumb-support area enables a stronger forward thrust and a faster, smoother cut (a high-performance chain also contributes to smoothness of cut).

The 4Ah battery (not included) for the SPR 500 AE can be used with all the handheld garden tools and lawnmowers in STIGA’s 500 Series cordless range.

WARNING: This chain-saw is for use by trained tree service operators only. Use without proper training can result in severe injuries.

Product Name	SPR 500 AE (12") (Bare)
Art Number	278420008/ST1
Price	£149.00
Product Name Description	48V Chainsaw
Homologation name	PR 500 Li 48
Power Source	Lithium-ion Battery
Motor type	Brushless
Electric motor power	1000 W
Max motor speed	11000 rpm
Voltage	48 V
Suggested battery capacity	4 Ah
Working time	12 mins
Bar type	Sprocket nose
Bar length	30 cm
Chain type	3/8" .050" (91PX045X)
Chain speed	20 m/s
Chain brake	Manual
Chain oil pump	Automatic
Chain tensioning system	Side screw tensioning
Handle type	Top handle
Vibe control system	No
Soft grip handle	Yes
Included tools	Bar key
Guaranteed sound power level (LwA) - dB(A)	105
Measured sound power level dB(A)	101.9
Measured sound pressure level at operator ear dB(A)	93.5
Vibration level front handle (m/s2)	4.37
Vibration level rear handle (m/s2)	3.72
Pack dimensions (LxWxH)	365 x 240 x 235
Pack weight	4.1 kg
Product weight	3.4 kg
Product length	600 mm
Product width	215 mm
Product height	243 mm

Batteries and chargers
Battery	2 AH	4 AH	5 AH	7.5 AH
Art number	278012008/ST1	278014008/ST1	278015008/ST1	277017008/ST1
Price	£78.00	£128.00	£138.00	£188.00
Charger	Standard Charger	Dual Charger	Fast charger	Battery Backpack
Art number	278021008/ST1	278021208/ST1	278031008/ST1	279050008/ST1
Charger price	£33.00	£52.00	£78.00	£148.00
