Robust and powerful, providing high levels of efficiency and reliability. The STIGA SP 466 chainsaw is powered by a 46.5 cc (2.1 kW) petrol engine and has a 45 cm (18") guide bar. It also features a magnesium engine cover which ensures robustness, reliability and quick cooling. Maintenance operations can be performed quickly and easily thanks to a number of features; such as the tool-less handle on the air filter cover without the need for additional tools, the tensioning wrench located under the rear handle and the fuel tank level monitoring window. The ergonomic soft-touch handle and spring system ensure reduced vibrations and greater comfort.

Product Name

SP 386 (16)"

SP 466 (18)"

SP 526 (20)"

Click Pictures to see preceeding or following models

Art number

240381602/S17

240461802/S17

240522002/S17

Price

189.00

279.00

339.00

Power Source

Petrol 2-stroke

Petrol 2-stroke

Petrol 2-stroke

Capacity

38.5 cc

46.5 cc

52 cc

Net power output

1.6 kW

2.0 kW

2.3 kW

Choke

Manual with automatic return

Manual with automatic return

Manual with automatic return

Fuel Tank Capacity

0.51 L

0.47 L

0.47 L

Engine rotation speed

12000 rpm

12500 rpm

12500 rpm

Idling speed

3100 rpm

3100 rpm

3100 rpm

Starter

Recoil

Recoil

Recoil

Primer

Yes

Yes

Yes

Carburetter type

Butterfly valve

Butterfly valve

Butterfly valve

Ignition coil type

Digital

Digital

Digital

Air filter type

Nylon net

Nylon net

Nylon net

Guaranteed sound power level (LwA) - dB(A)

115

115

114

Measured sound power level dB(A)

111.5

111.7

110.8

Measured sound pressure level at operator ear dB(A)

99.6

99.6

100.6

Vibration level front handle (m/s2)

5.72

4.85

6.04

Vibration level rear handle (m/s2)

4.37

4.86

6.49

Pack dimensions (LxWxH)

440 x 270 x 315

470 x 275 x 315

530 x 275 x 320

Pack weight

8.09 kg

9.17 kg

10.0 kg

Product weight

5.5 kg

6.4 kg

6.6 kg

Product length

775 mm

831 mm

885 mm

Product width

283 mm

275 mm

285 mm

Product height

315 mm

315 mm

320 mm

Bar type

Sprocket nose

Sprocket nose

Sprocket nose

Bar length

40 cm

45 cm

50 cm

Chain type

3/8" .050" (91PX040X)

.325" .058" (21BPX072X)

.325" .058" (21BPX072X)

Chain speed

22.8 m/s

23.1 m/s

23.1 m/s

Chain brake

Manual and inertial

Manual and inertial

Manual and inertial

Chain oil tank capacity

0.26 L

0.26 L

0.26 L

Chain oil pump

Automatic adjustable

Automatic adjustable

Automatic adjustable

Chain tensioning system

Side screw tensioning

Side screw tensioning

Side screw tensioning

Handle type

Top handle

Top handle

Top handle

Vibe control system

Yes

Yes

Yes

Soft grip handle

Yes

Yes

Yes

Included tools

Chain round file, Screwdriver, Spark plug key

Chain round file, Screwdriver, Spark plug key

Chain round file, Screwdriver, Spark plug key

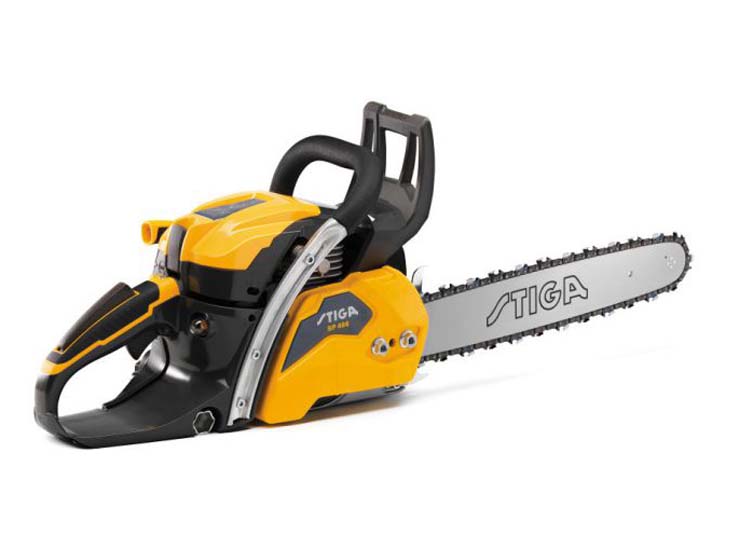

Chainsaw SP 466 18"
