Product Name |

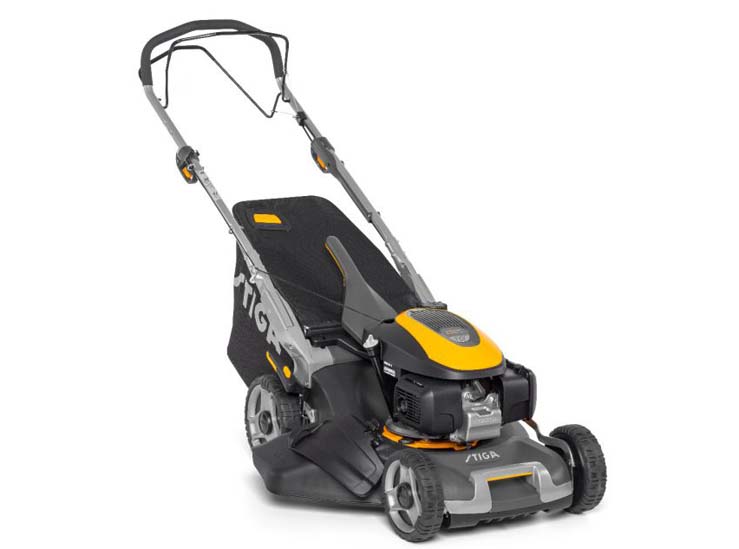

TWINCLIP 50 SQ H |
||
Click Pictures to see preceeding or following models |
 |
 |
|
Art Number |
294512048/ST1 |
294512838/ST1 |
294563038/ST1 |
Price |
£549.00 |
£699.00 |
£710.00 |
Product Name Description |
Self Propelled Lawnmower |
Self Propelled Lawnmower |
Self Propelled Lawnmower |
Homologation name |
MP2 504 S |
MP2 504 SQ |
MP2 554 SV |
Power Source |
Petrol |
Petrol |
Petrol |
Capacity |
166 cc |
145 cc |
167 cc |
Engine Brand |
STIGA |
Honda |
Honda |
Engine Model |
ST 170 OHV Autochoke |
GCVx145 OHV Autochoke |
GCVx170 OHV Autochoke |
Net power output |
2.6 kW @ 2900 rpm |
2.75 kW @2900 rpm |
3.3 kW @ 2900 rpm |
Starter |
Recoil |
Recoil |
Recoil |
Fuel Tank Capacity |
1 L |
0.95 L |
0.95 L |
Engine oil tank capacity |
0.55L |
0.4 L |
0.4 L |
Cutting width |
48 cm |
48 cm |
53 cm |
Cutting Method |
Collecting, Mulching, Rear discharge |
Collecting, Mulching, Side discharge, Rear discharge |
Collecting, Mulching, Rear discharge |
Skid plate |
Yes |
Yes |
Yes |
Roller |
No |
No |
No |
4 in 1 cutting system |
No |
Yes |
No |
Mulching function |
Yes |
Yes |
Yes |
Deck material |
Galvanized Steel |
Galvanized Steel |
Galvanized Steel |
Cutting height adjustment |
Centralised |
Centralised |
Centralised |
Cutting height positions |
7 positions |
7 positions |
7 positions |
Cutting height range |
25 - 77 mm |
25 - 77 mm |
25 - 77 mm |
Driving |
Self-propelled |
Self-propelled |
Self-propelled |
Traction |
Rear-wheel drive |
Rear-wheel drive |
Rear-wheel drive |
Maximum speed forward |
3.6 km/h |
3.6 km/h |
2.7 - 4.4 km/h |
Speed variator |
No |
No |
Yes |
Collector capacity |
70 L |
70 L |
70 L |
Collector type |
Textile (plug-in) with warn |
Textile (plug-in) with warn |
Textile (plug-in) with warn |
Wheels |
210/240mm grooved wheels on ball bearings |
210/240mm grooved wheels on ball bearings |
210/240 mm grooved aluminium wheels on ball bearings |
Blade Brake Clutch (BBC) |
No |
No |
No |
Vibe control system |
No |
Yes |
Yes |
Front handle |
Yes |
Yes |
Yes |
Adjustable handlebar |
Yes |
Yes |
Yes |
Washing link |
No |
No |
No |
Measured sound pressure level at operator ear dB(A) |
86.54 |
86.54 |
86.54 |
Pack dimensions (LxWxH) |
1185 x 595 x 600 |
1185 x 595 x 600 |
1185 x 595 x 600 |
Pack weight |
47.2 kg |
48.2 kg |
53.7 kg |
Product weight |
41 kg |
43 kg |
48 kg |
Product length |
1610 mm |
1610 mm |
1680 mm |
Product width |
530 mm |
685 mm |
560 mm |
Product height |
1150 mm |
1150 mm |
1150 mm |
